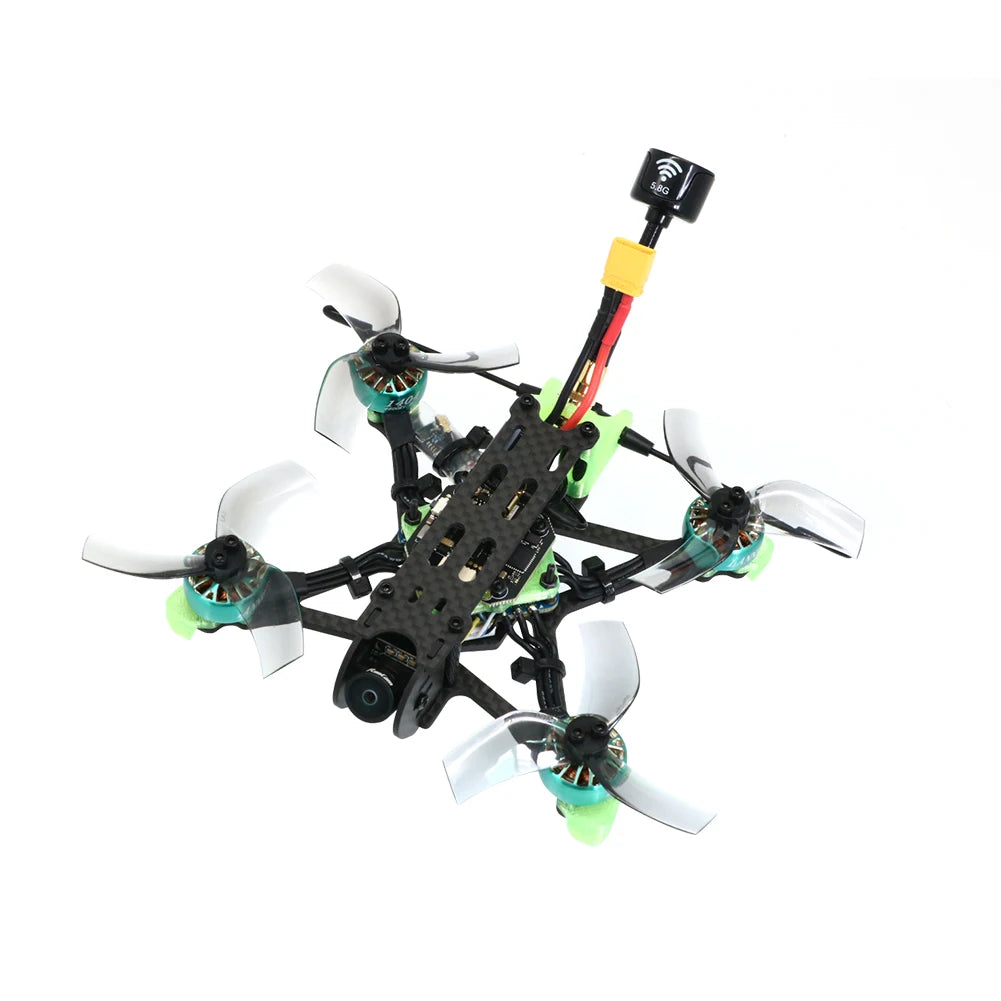

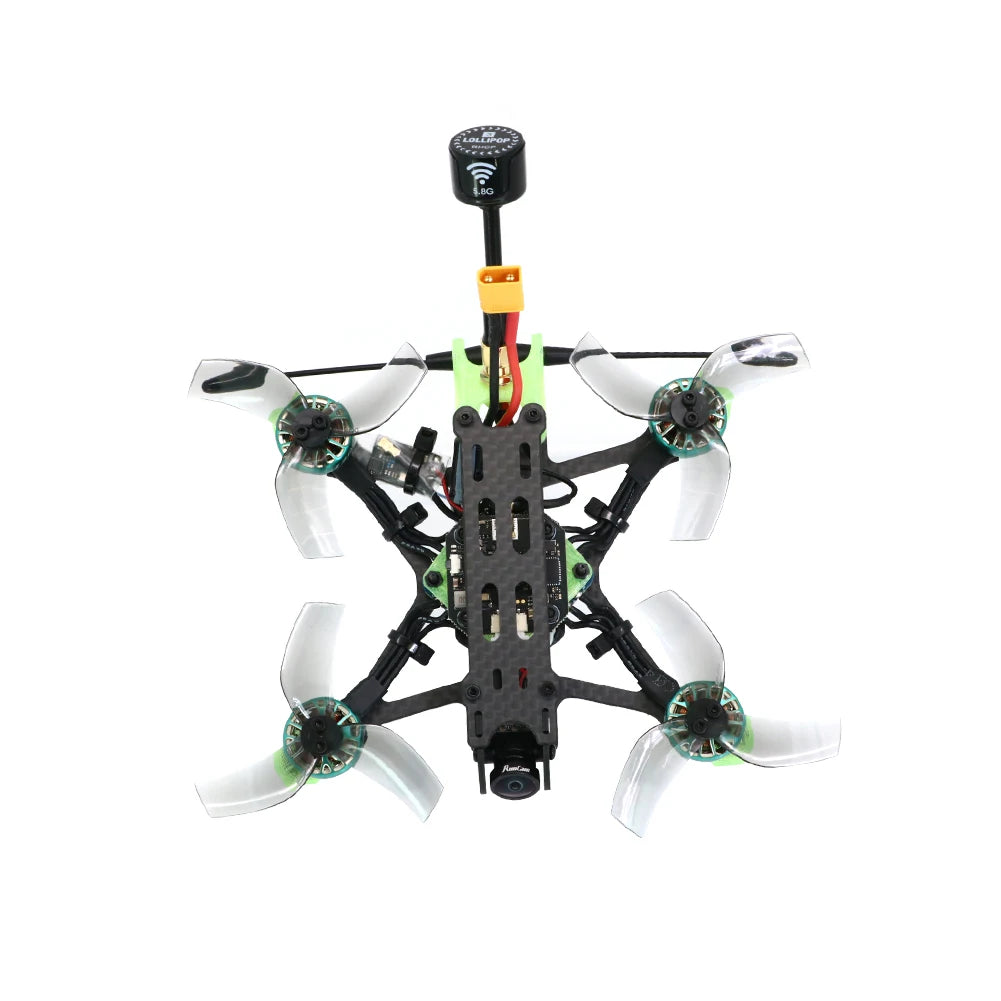

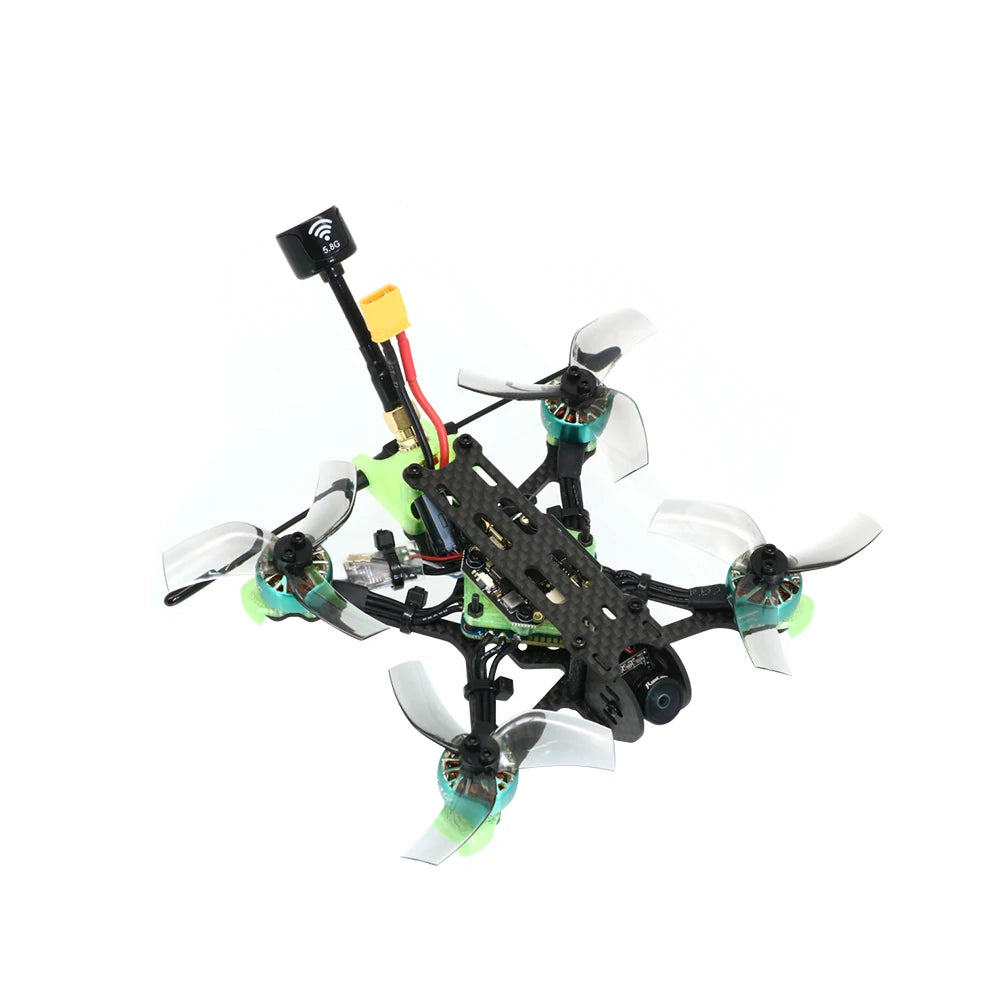

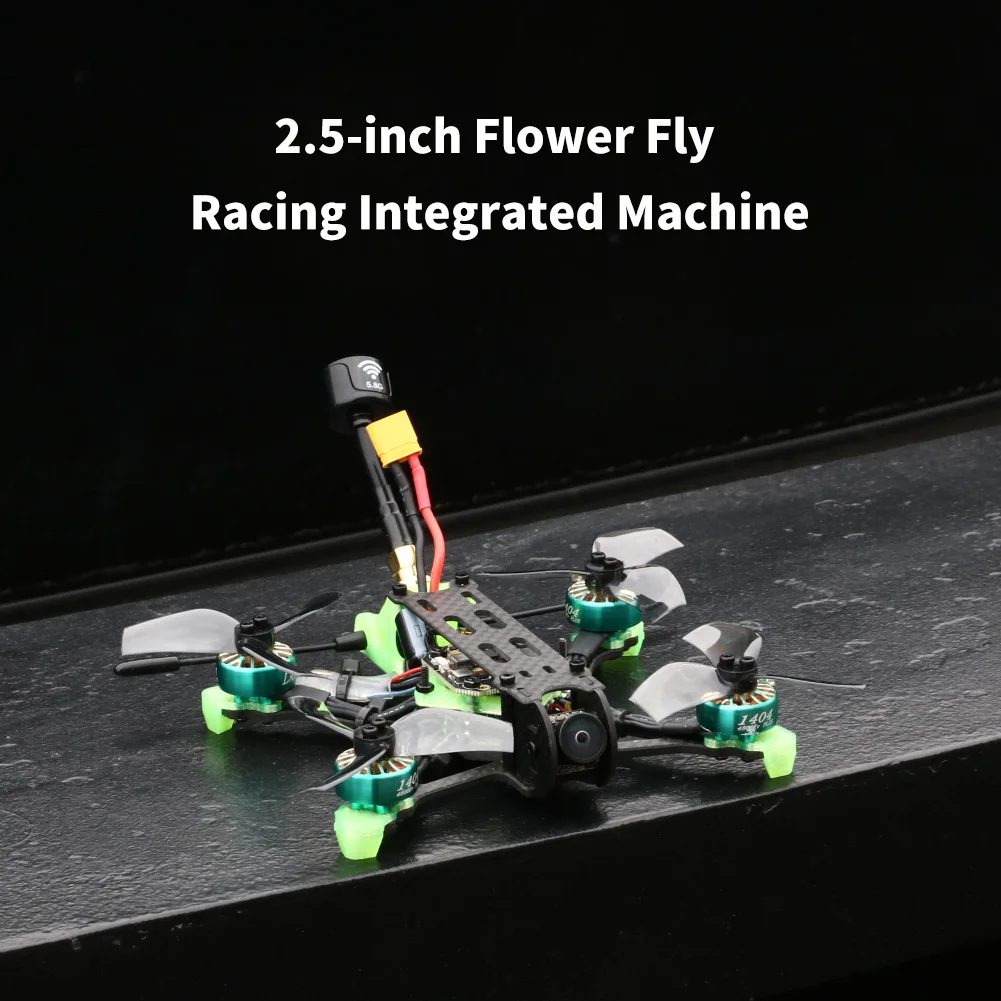

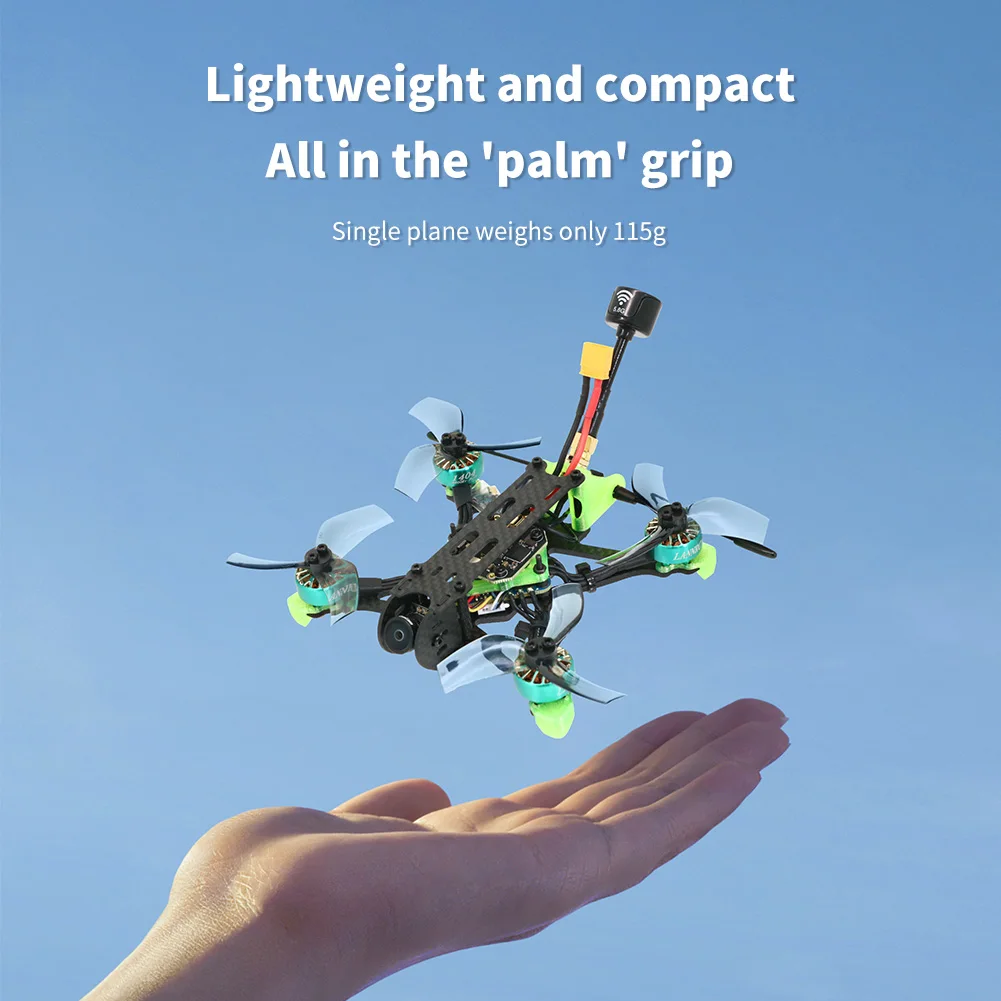

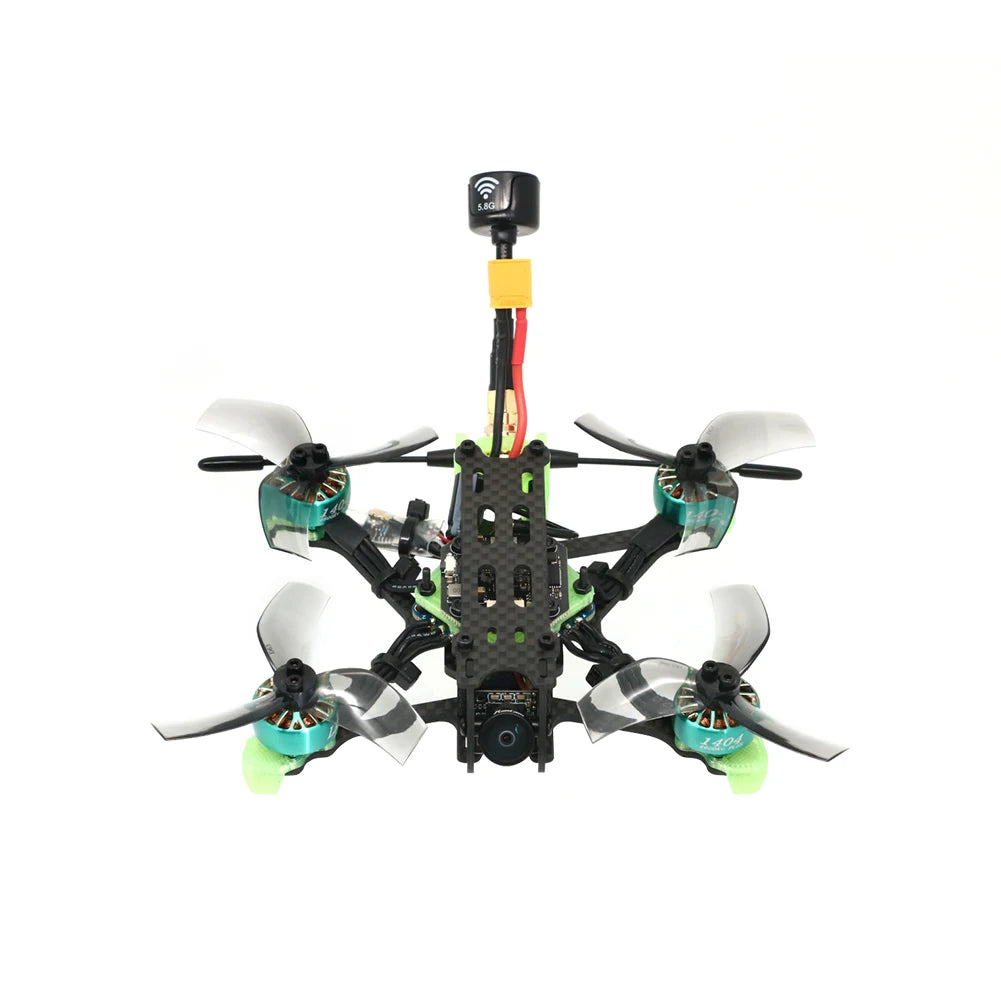

UAngel25 2.5inch FPV Drone PNP / BNF ELRS2.4G / 915MHZ Quadcopter 800TVL HD Aerial Photography Aircraft

UAngel25 2.5inch FPV Drone PNP / BNF ELRS2.4G / 915MHZ With RunCam Nano4 Camera F411 20A Stack 1404 4600kv Motor 25-1000mw VTX

Frame;angel25

Wheelbase: 118mm

Bottom plate thickness: 2.5mm

Other board thickness: 1.5mm

Flight control installation holes: 16x16, 20x20, 25.5x25.5

Motor installation holes: 9x9,12x12

Camera installation size: 14mm

Aluminum column height: 20mm

blade;D63

Material:PC

Diameter:63mm

Pitch:2.5inch

Inner shaft diameter:2mm

Hub Thickness:4.9mm

Weight:1.36g/PC

Mounting Type:T-Mount

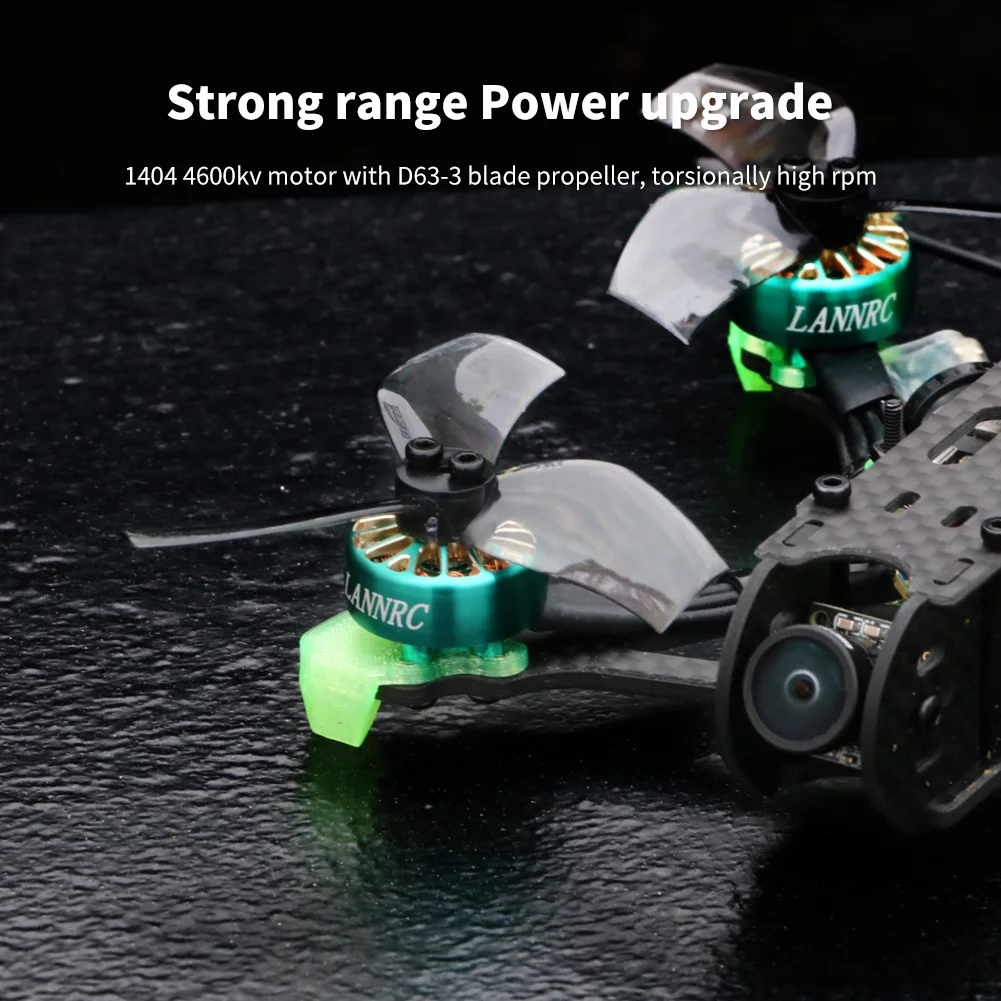

Motor;1404 4600kv

Configu-ration:9N12P

Stator diameter:14mm

Stator Length:4mm

Staft Diameter:2mm

Size:φ19.3*14.8mm

Weight:10.3g

Idle current(10)@10V:≤0.72A

No.of cells(Lipo):3-4S

Max continuous power(W)60S:287.8W

Internal Resistance:159mΩ

Max current(60S):17.99A

Cable:22AWG# 150mm Cable

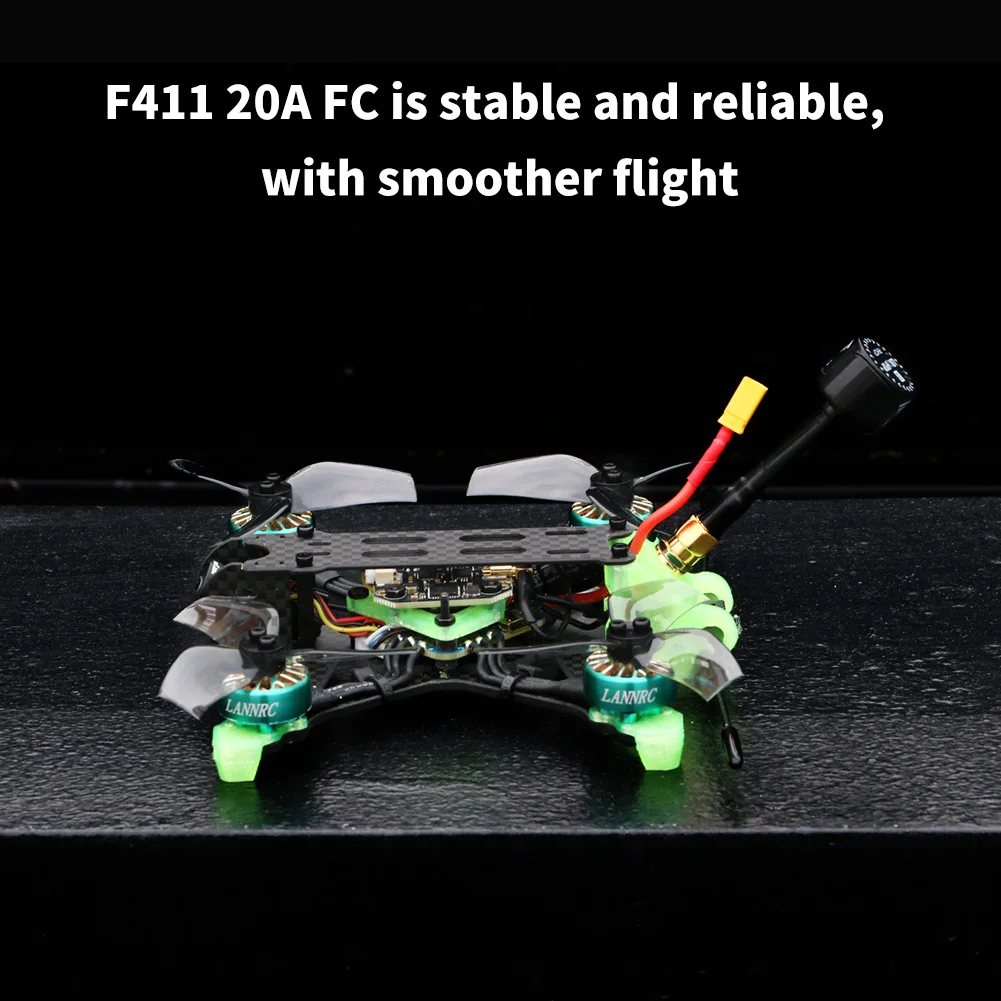

ESC+FC:20A+F411

Size: 33.* 33.mm (25.5mm-26.5mm mounting hole)

Packing size: ø63*32mm

Product net weight: 7g

Package weight: 25g

Flight control parameters:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

Barometer

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Firmware version: HAKRCF411D

Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

ESC parameters:

Firmware support: BLHELI_S

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo (20A 2-4S)

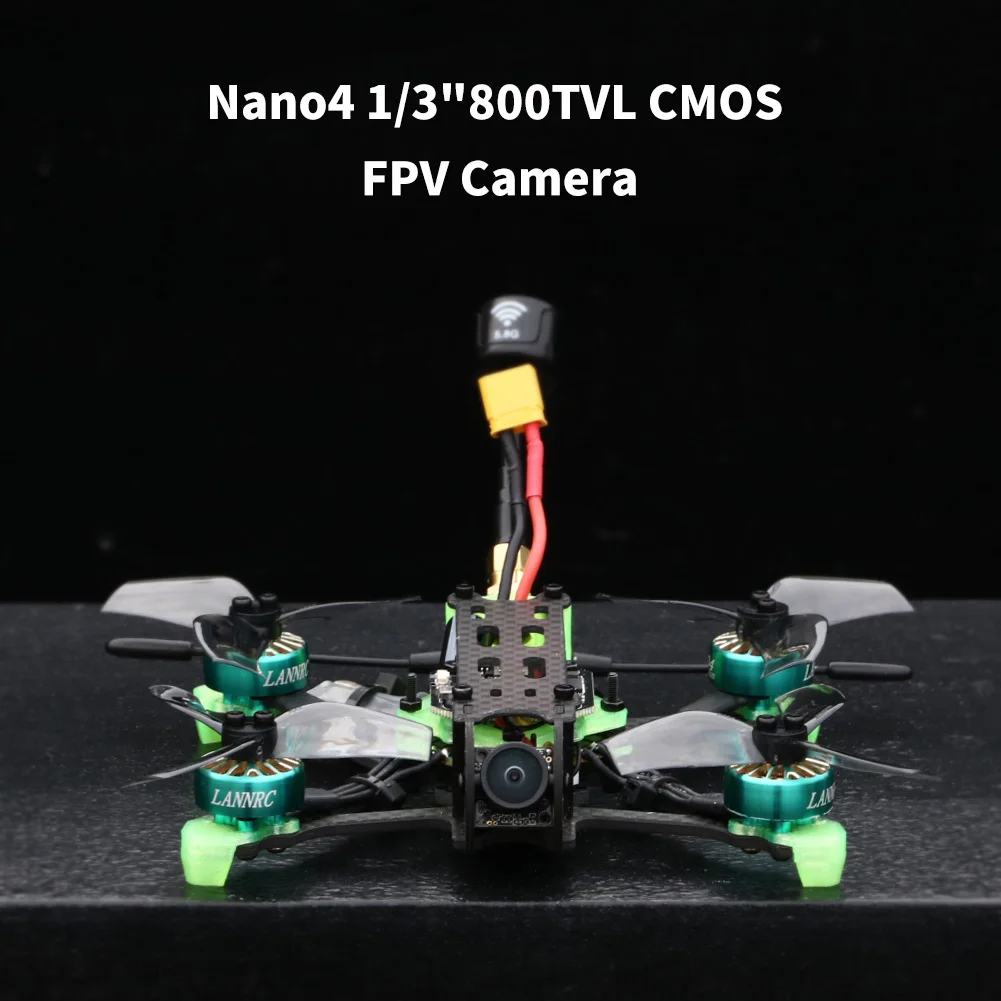

Camera:nano4 800tvl

image sensor: 1/3 coms

Horizontal Resolution：800tvl

lens:2.1mm(M8)FOV155°

signal System:NTSC

S/N Ratio:>50dB

Electronic Shutter Speed:Auto

Auto Gain Control(AGC):Auto

Min.IIIUMination:0.01Lux@1.2F

D-WDR:Auto

Day/Night:color

Power:DC3.3-5.5V

Current:160mA@5V 180mA@3.3V

Housing Material:ABS

Net Weight:2.9g

Dimensions:L14mm*W14mm*H14mm

VTX:5.8g 25-1000mw

Input Voltage:7-26V

On-Board BEC Output:5V

Number of Transmission Channels:48

Transmitting Power:25/100/200/400/1000mw

Video Format:PAL/NTSC

Working Temperature:-25℃-105℃

Control Protocol:TBS SmartAudio

Antenna Connector:MMCX

Connection Mode:SH1.0-8P

Installation Hole:20mm&30.5mm

Size:(29mm*29mm)&(37.5mm*37.5mm)

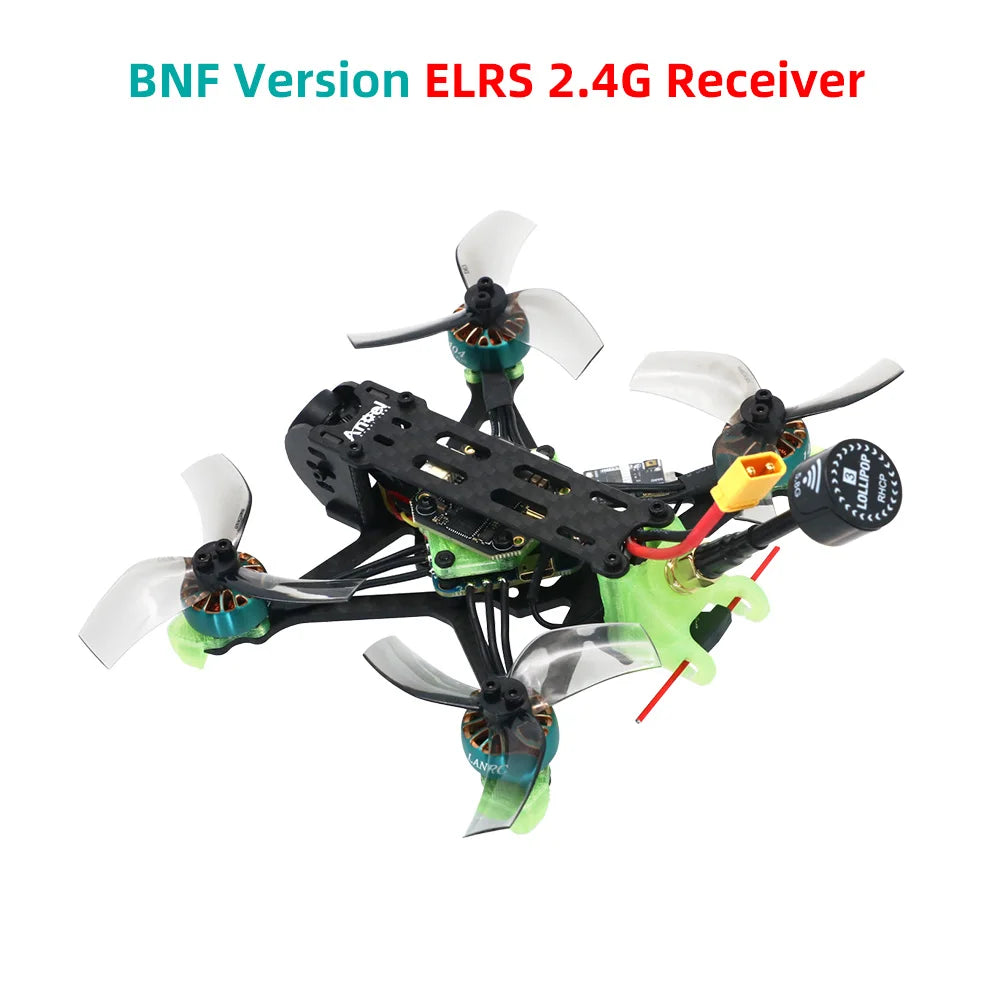

receiver:elrs 2.4g nano

Frequency band :2.4g

Firmware :BETAFPV 2400RX

Input voltage :4.5-5.5V

Antenna connector :IPEX1

Weight :1.6g

Size :10.5x17mm

Telemetry power :20dbm

Maximum receive refresh rate :500Hz

Minimum receive refresh rate :25Hz

Work Agreement :CRSF

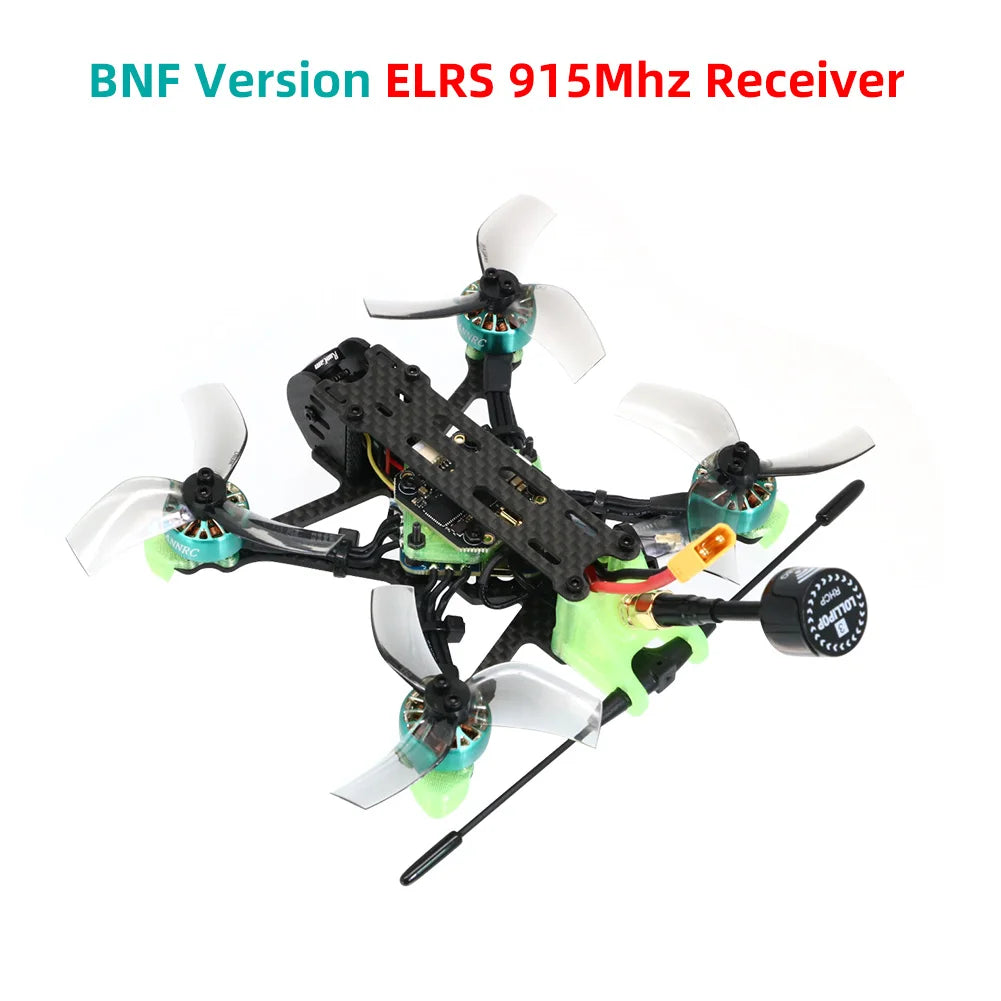

receiver:elrs 915

Model:ELRS 915M NANO

RF Freq:915Mhz

IC:SX1276+ESP8285

Color:Black

Connector:IPEX 1

Input Power:3.6-5.5V

Weight:0.6g(receiver only)

Size:11mm*18mm

Pay attention to choosing between two receivers
