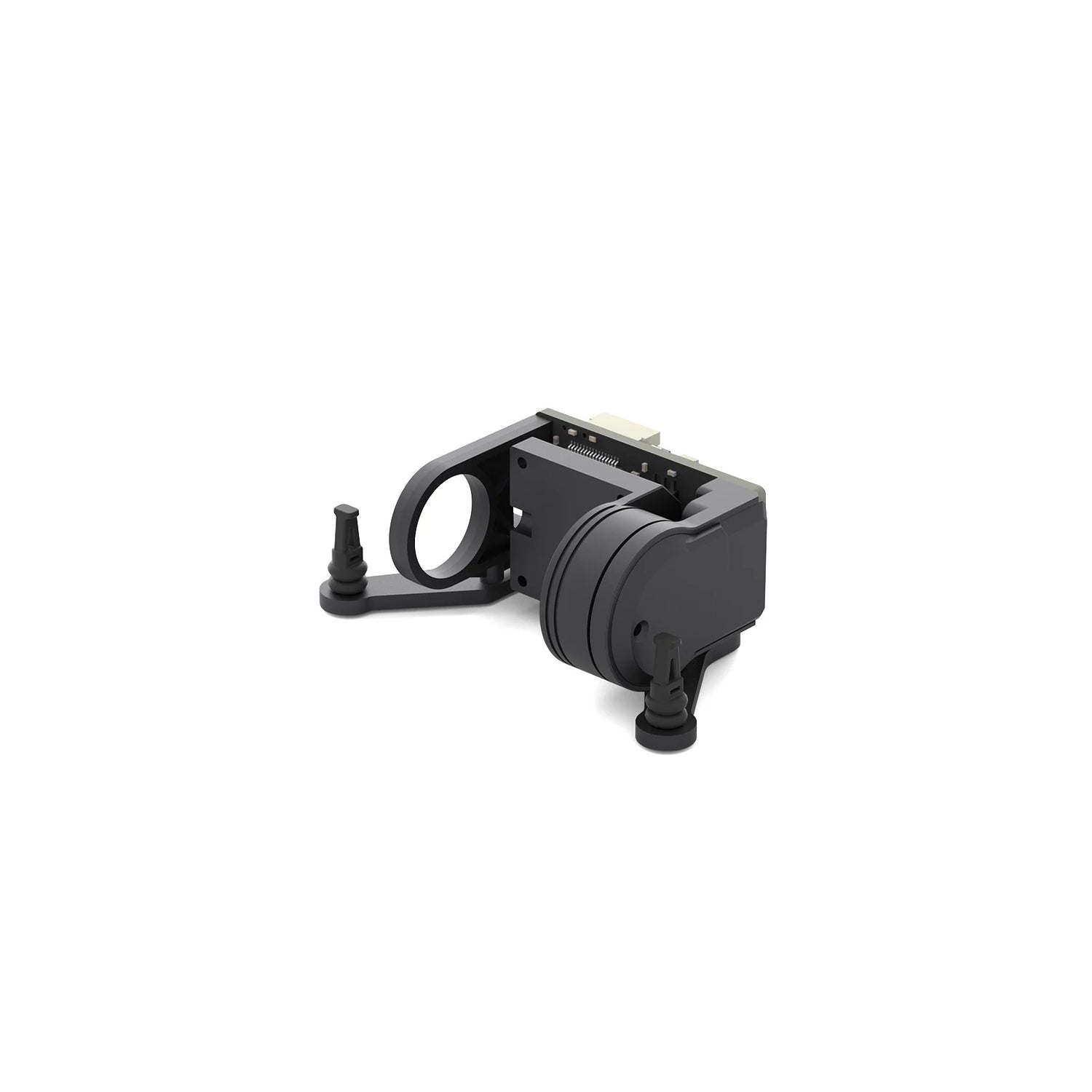

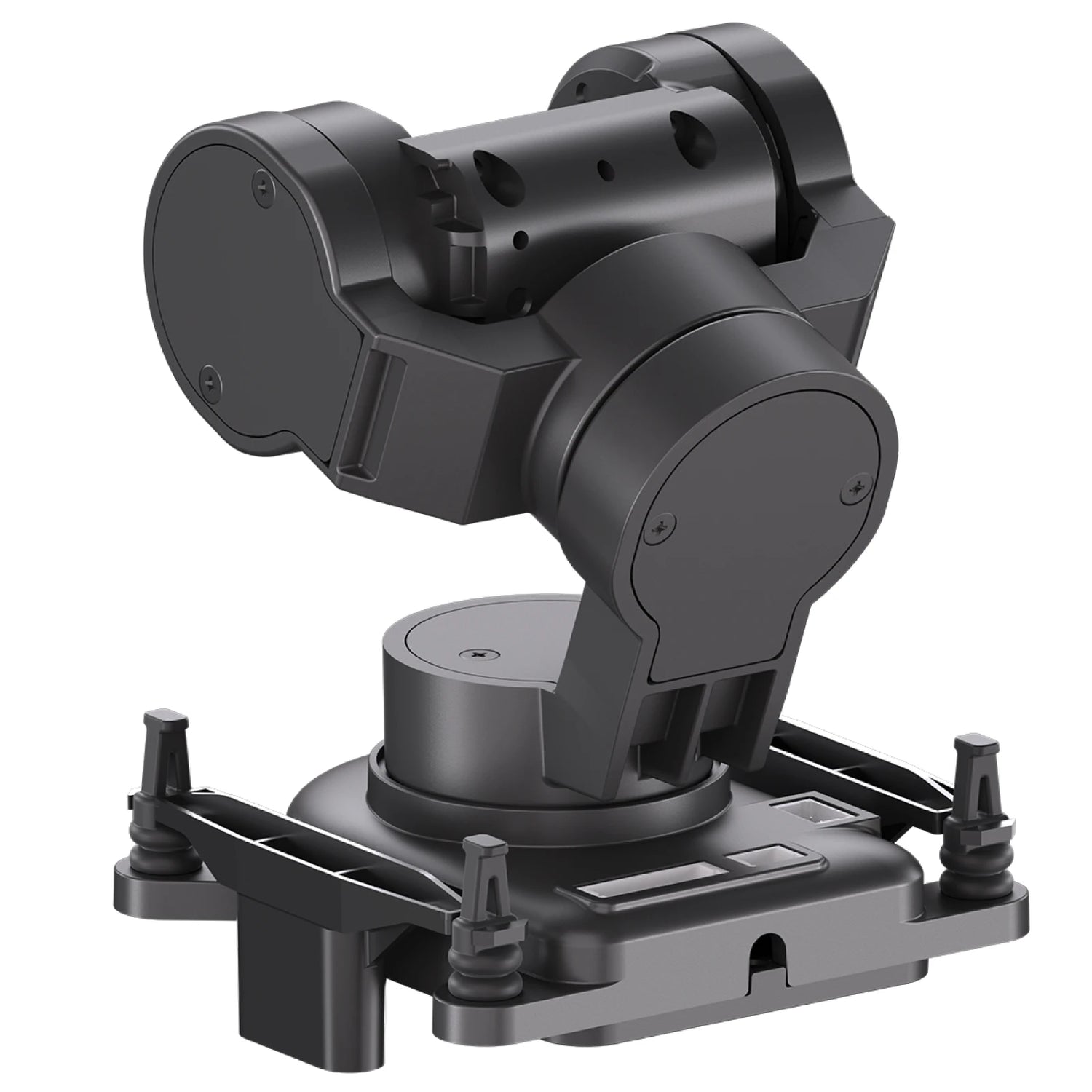

CADDXFPV Gimbal GM1/GM2/GM3 (No Camera) Head Track FPV GM Series For 19mm RC FPV Camera Walksnail Avatar HD Goggles L/X
CADDXFPV Gimbal GM1/GM2/GM3 (No Camera) Head Track FPV GM Series For 19mm RC FPV Camera Walksnail Avatar HD Goggles L/X - GM3 V2(No camera) / China Mainland is backordered and will ship as soon as it is back in stock.
Returns & Refunds
Returns & Refunds
Not what you thought it was? We accept returns subject to our returns policy.
Delivery and Shipping
Delivery and Shipping
All orders are tracked by us. Depending on the shipping options available at checkout, you may also be able to track your item. Alternatively contact us if you would like to know the status of your order.
CADDXFPV Gimbal GM1/GM2/GM3 (No Camera) Head Track FPV GM Series Fo...
10% OFF WHEN YOU SPEND £50 OR MORE
Description
Description

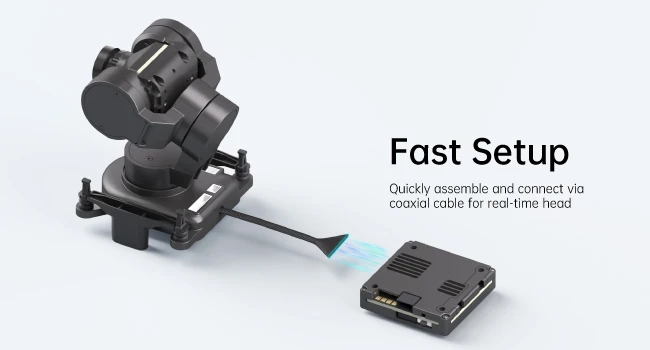

Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to set up and start using the gimbal.

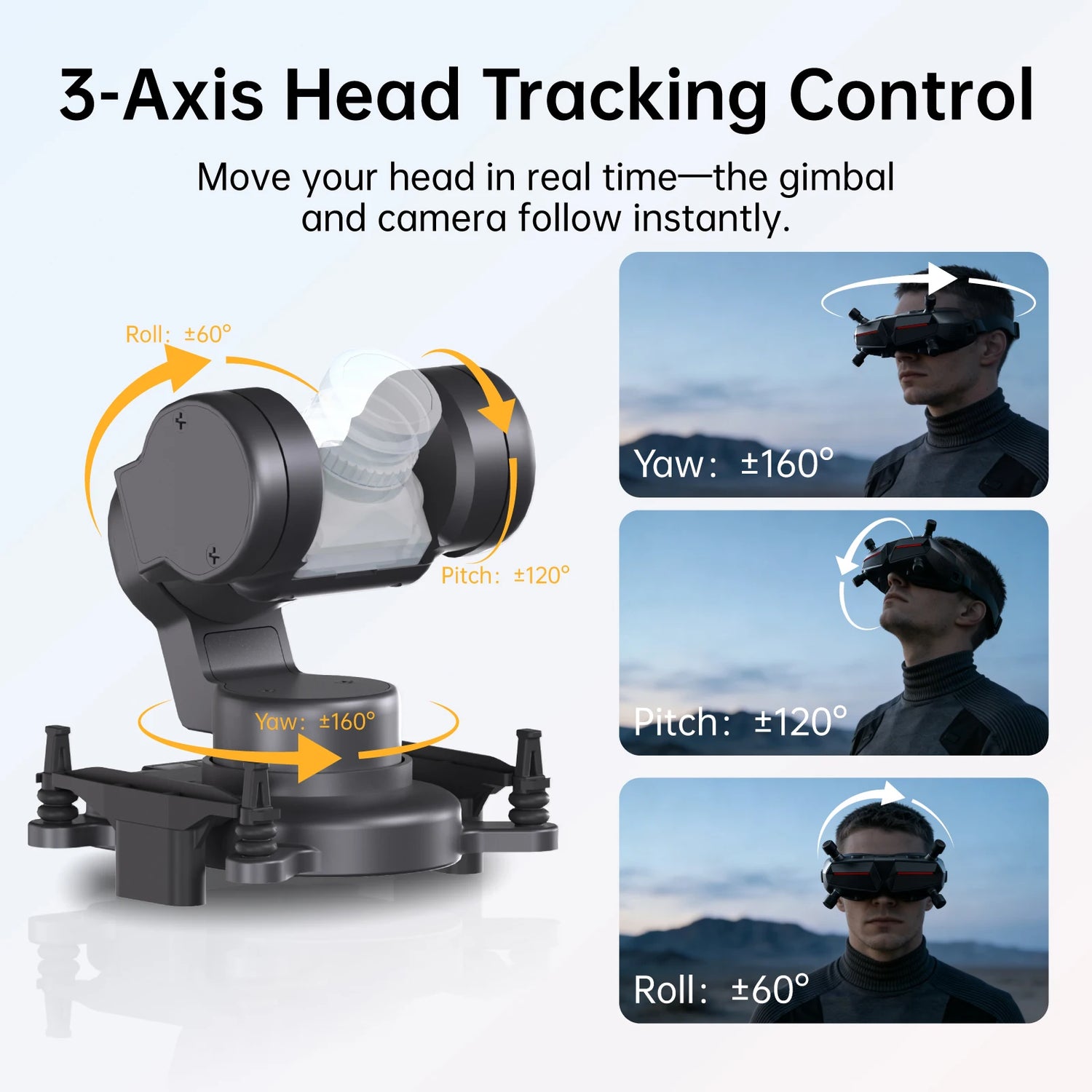

Available in three models—single-axis, dual-axis, and three-axis—our gimbal caters to the diverse needs and applications of users. Whether you're a professional pilot or an amateur enthusiast, The flexibility of CADDXFPV gimbals ensures they can meet the demands of any FPV application.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within15 working days.

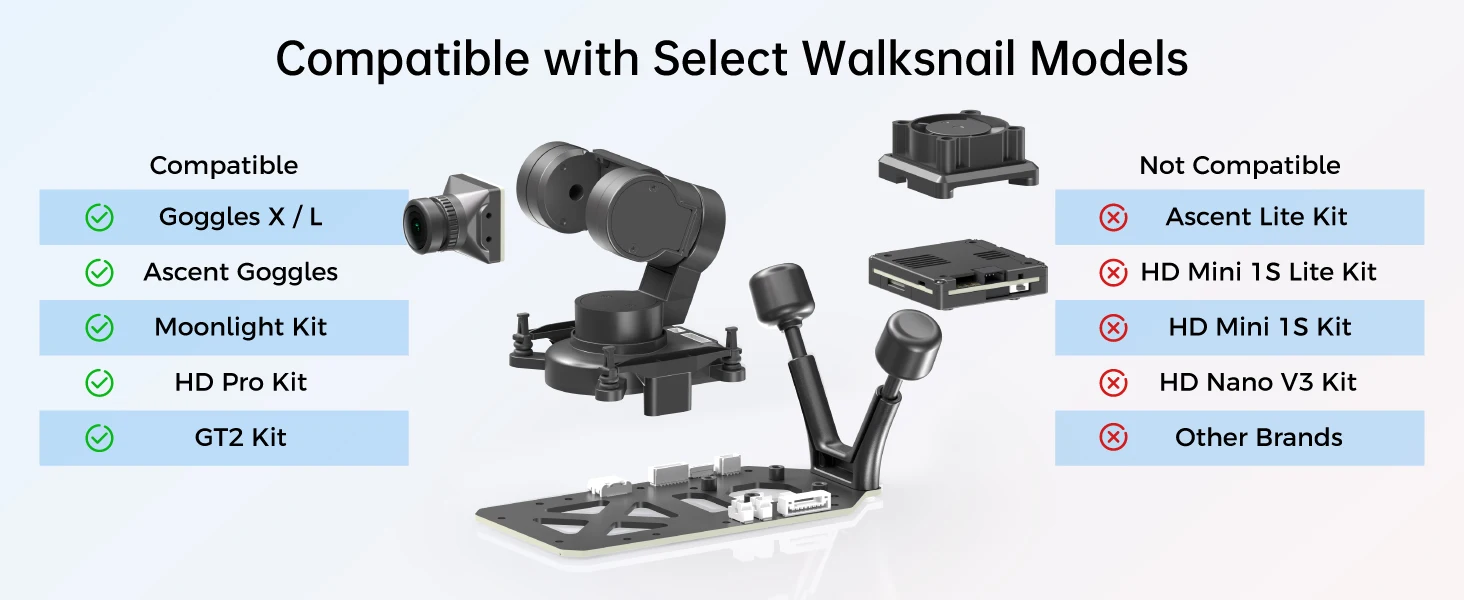

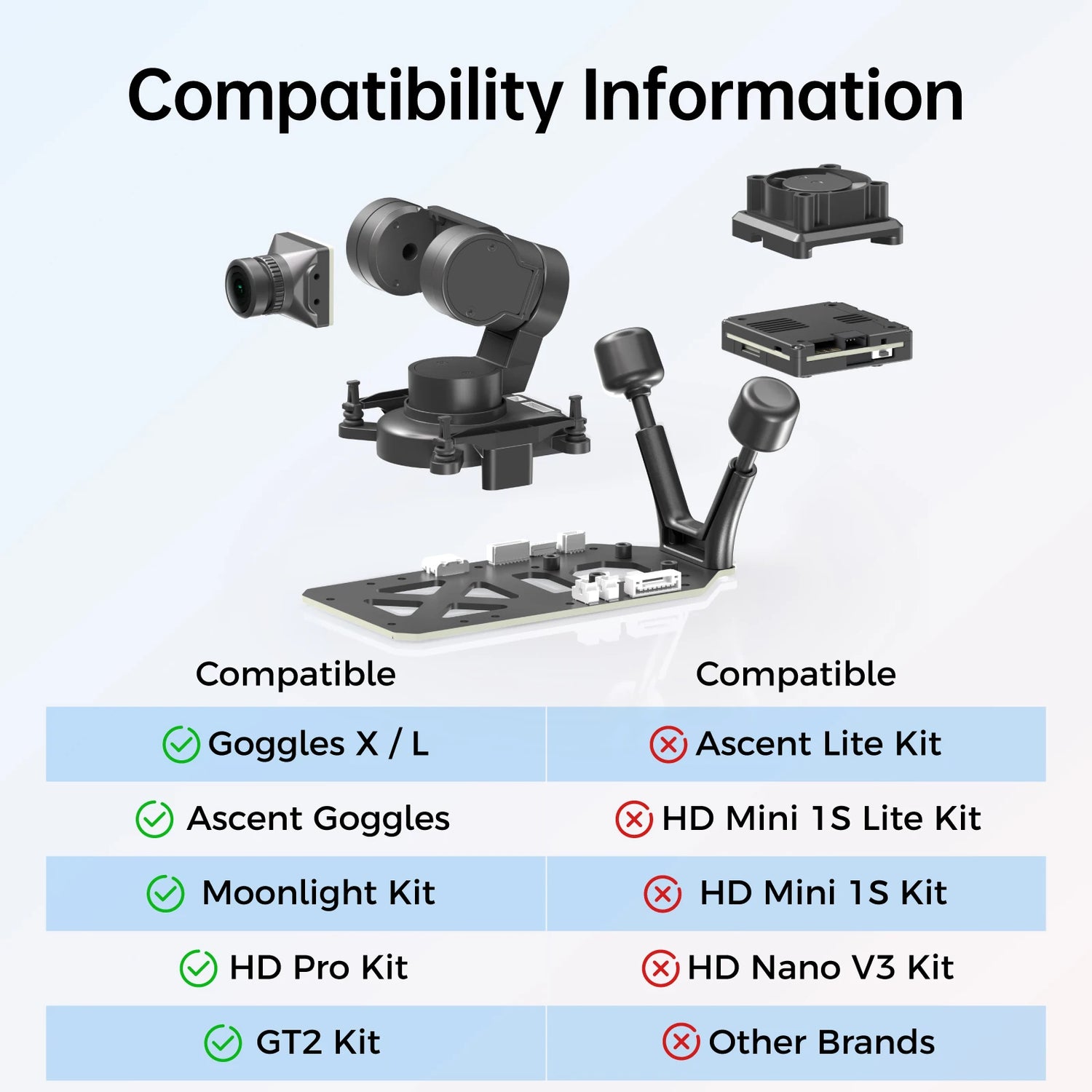

Q: Are GM1/GM2/GM3 compatible with all walknsail VTX?

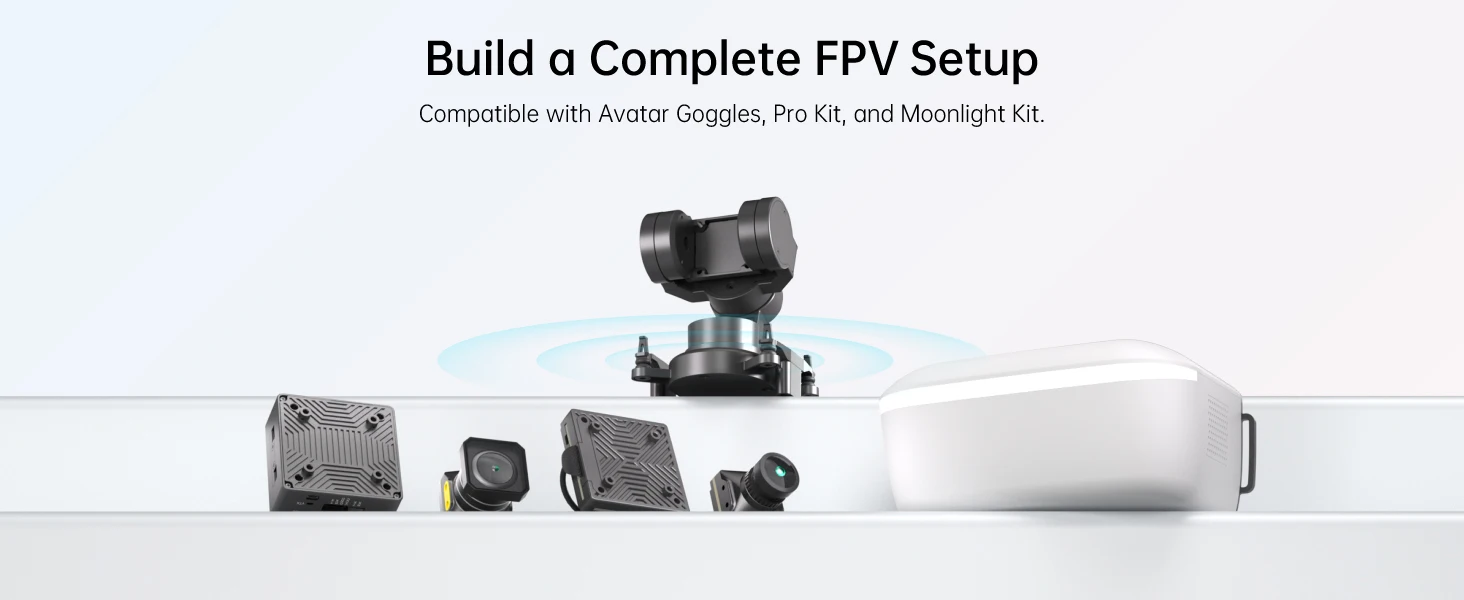

A: The gimbal can't be used with V1 VTX, Mini 1s, Nano V3 and GT VTX, but can only be used with V2 VTX, V2 VTX Dual and Moonlight VTX.
Specification |
|
Model |
GM1 |
Camera Compatibility |
19mm FPV Camera |
Image Stabilization |
±0.005° |
Max Controllable Speed |
±1500°/s |
Max Controlled Rotational Range |
pitch: ±120° |
Size |
32.2x38.1x20.5mm |
Weight |
16g |
Control Mode |
PWM /UART |
Head Tracking Control |
Support |
Voltage |
7~26V |
Static Power Dissipation |
1.0W |
Model |
GM2 |
Camera Compatibility |
19mm FPV Camera |
Image Stabilization |
±0.005° |
Max Controllable Speed |
±1500°/s |
Max Controlled Rotational Range |
Pitch: ±120°, Roll: ±60° |
Size |
46.7x46.5x26.2mm |
Weight |
30g |
Control Mode |
PWM /UART |
Head Tracking Control |
Support |
Voltage |
7~26V |
Static Power Dissipation |
1.2W |
Model |
GM3 |
Camera Compatibility |
19mm FPV Camera |
Image Stabilization |
±0.005° |
Max Controllable Speed |
±1500°/s |
Max Controlled Rotational Range |
Pitch: ±120, Roll: ±60, Yaw: ±160° |
Size |
50x46.5x53mm |

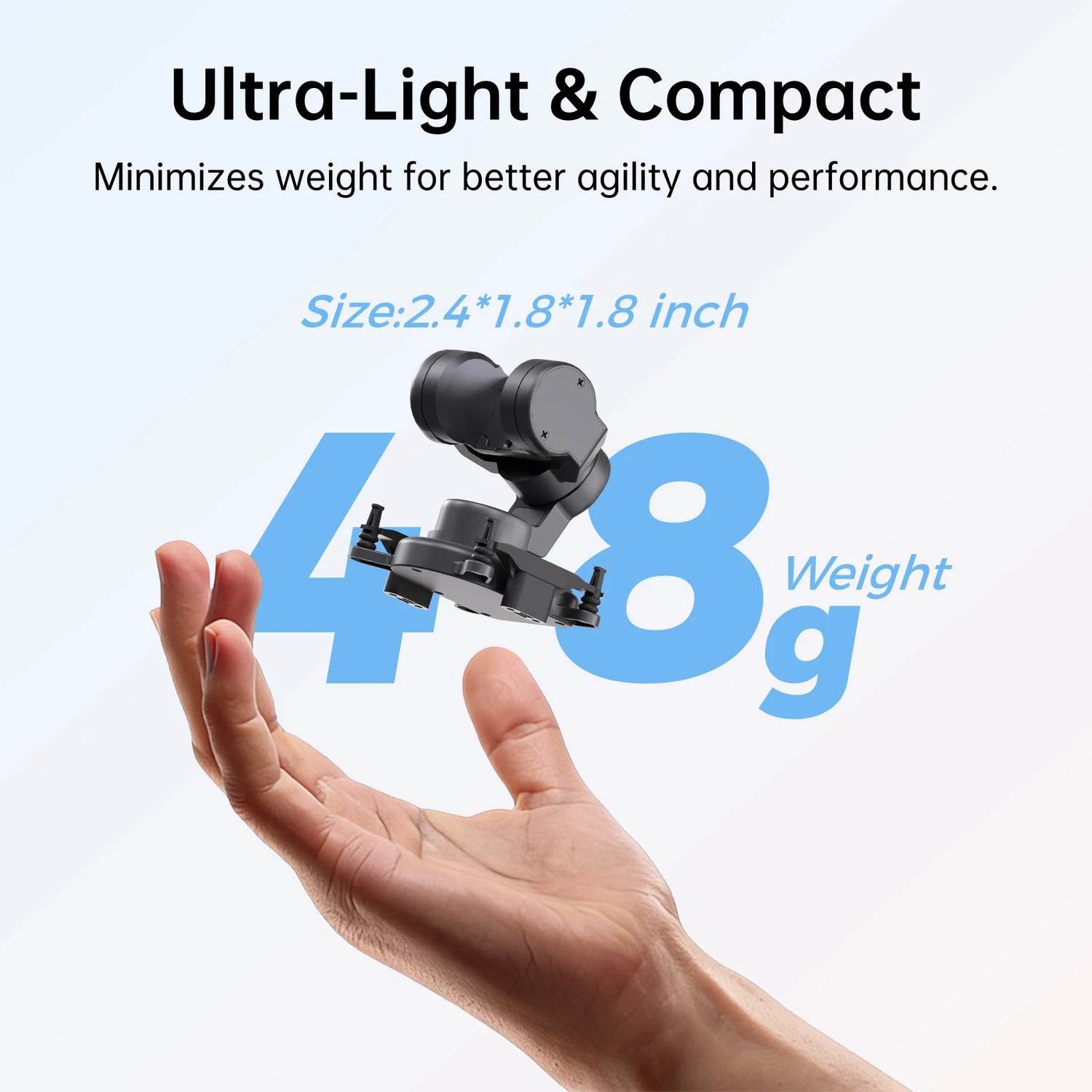

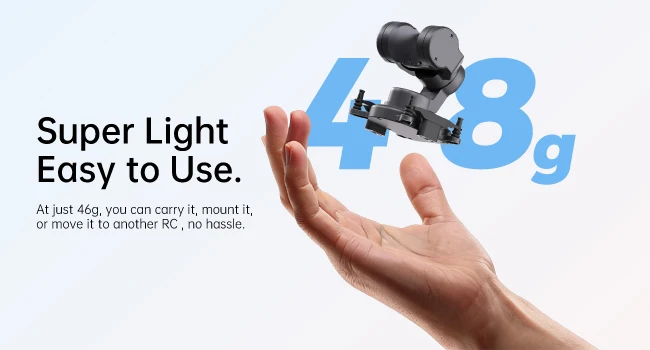

Weight |
46g |
Control Mode |
PWM /UART |
Head Tracking Control |
Support |
Voltage |
7~26V |
Static Power Dissipation |
1.5W |
Packing List |
|
GM1/GM2/GM3 |
X1 |
Power Cable |
X1 |
