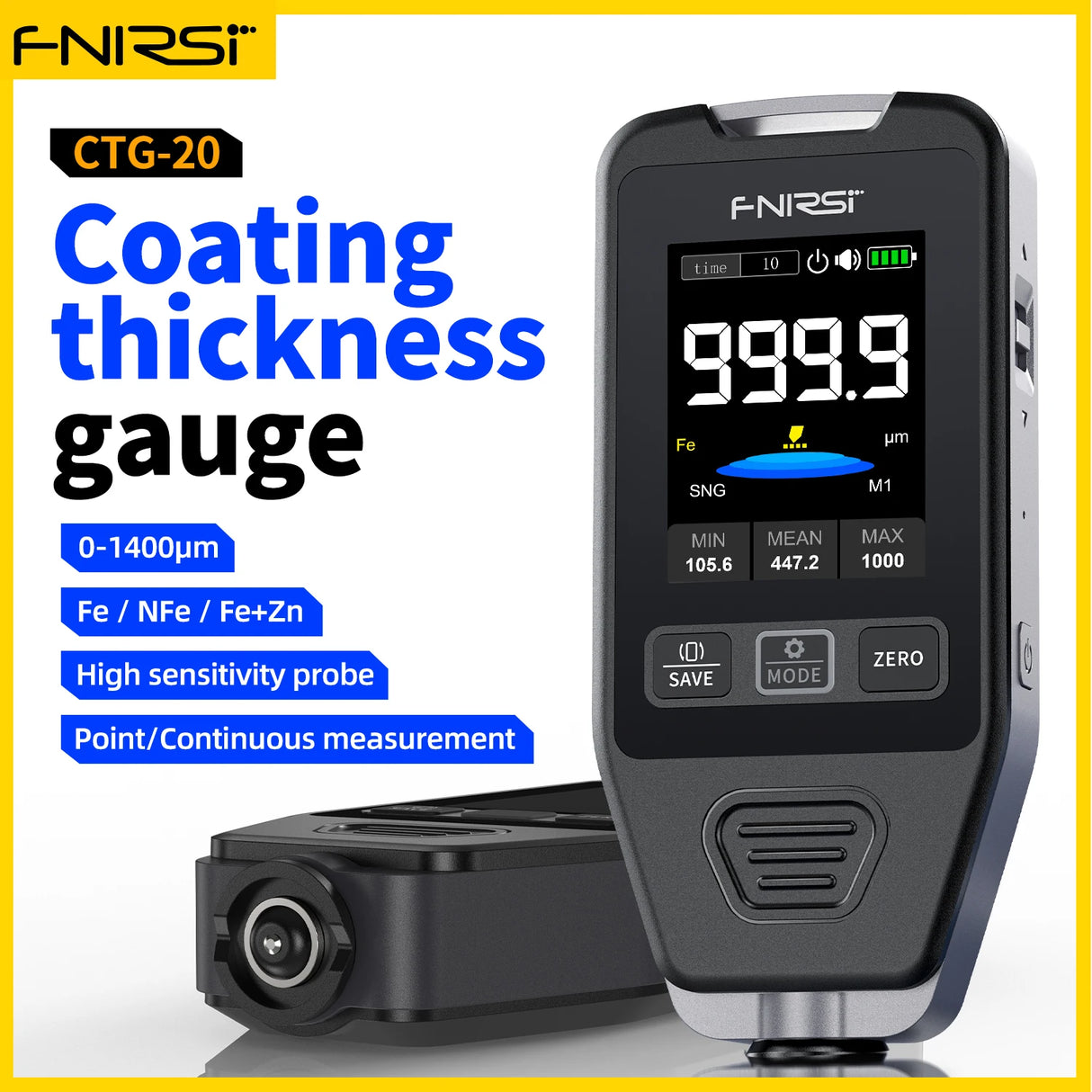

FNIRSI CTG-20 Car Paint Thickness Gauge Electroplate Metal & Putty Powder Coating Thickness Gauge for Car 0-1400um Fe nFe Fe+Zn

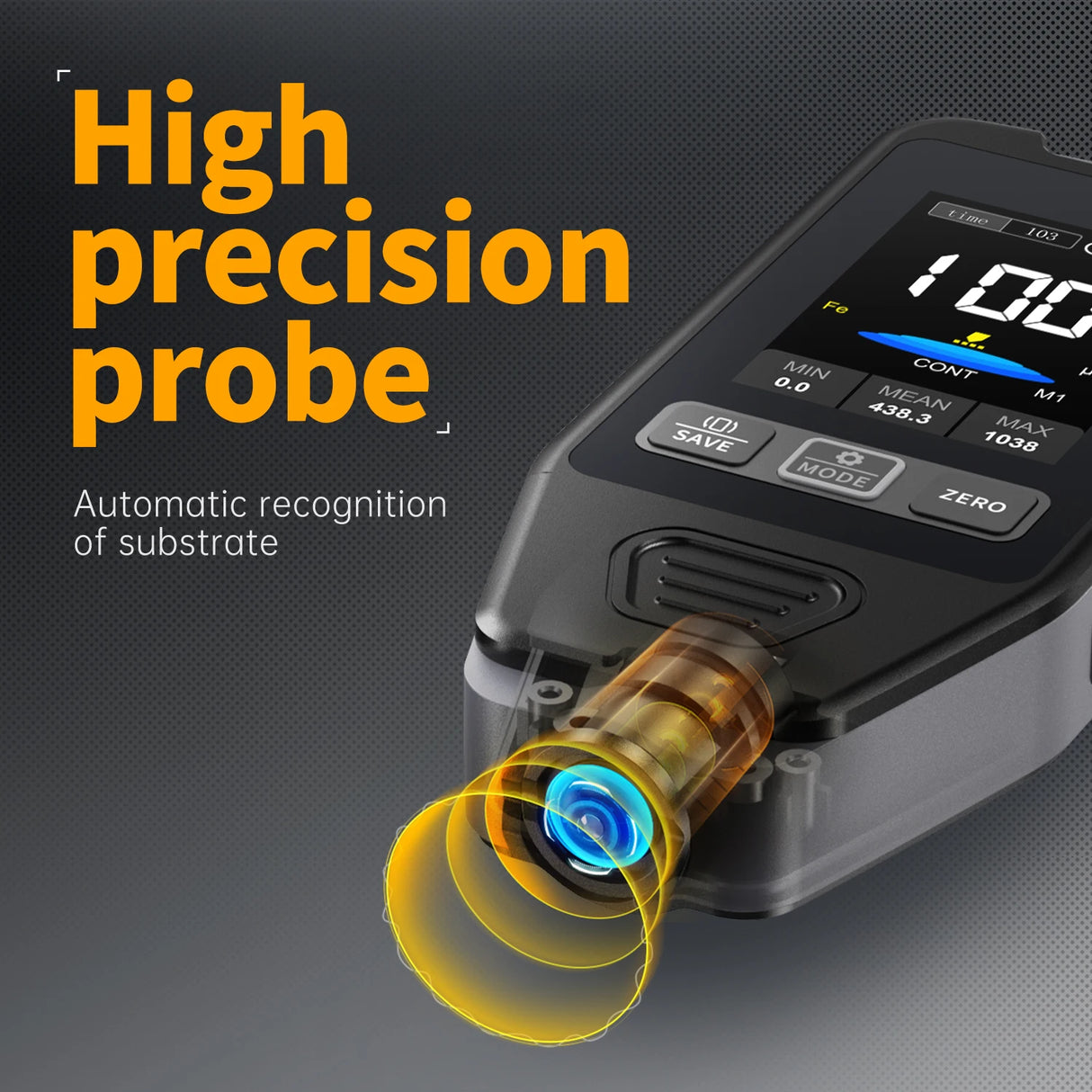

This product is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Built in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.

Please Note：

·The curvature of the substrate to be tested is too steep.

·The area of the substrate to be tested is too small.

·The surface of the substrate to be tested is rough.

·There is a strong magnetic field nearby.

·The ambient temperature/humidity changes significantly.

·Insufficient battery, please charge in time.1.Product Model：CTG-20

2.Measuring Range：0-1400μm

3.Accuracy：±3%+2μm

4.Resolution Ratio：0.1μm

5.Calibration：Zero point calibration；Multi-point calibration

6.Unit：μm、mil

7.Mini Convex Curvature Radius：5mm

8.Mini Concave Curvature Radius：25mm

9.Mini Measurement Area Diameter：20mm

10.Work Environment：No strong magnetic field

11.Work Temperature：-10 ℃ -+50 ℃

12.Humidity：20% -90% RH

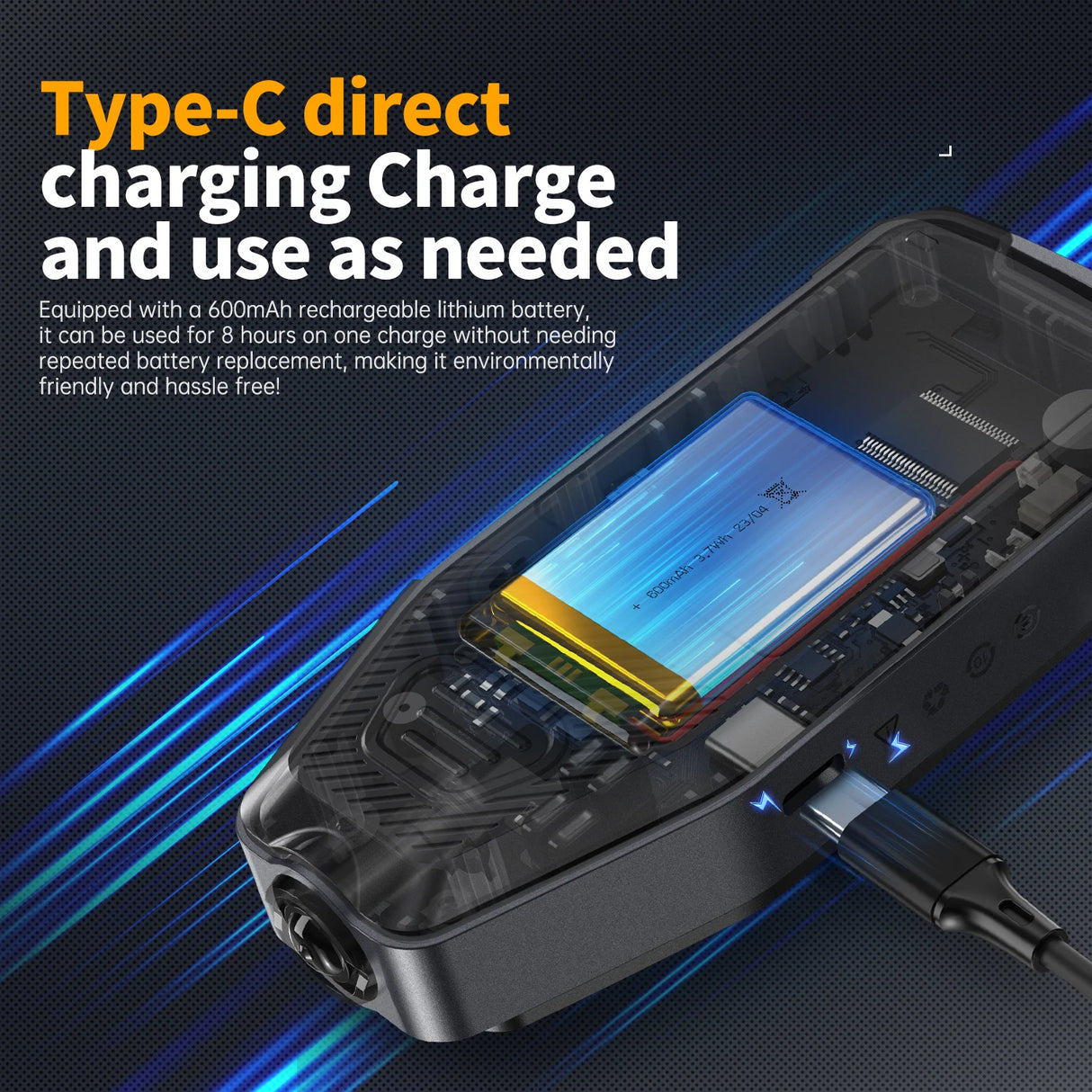

13.Battery：600mAh Lithium battery

14.Size：115 x 48 x 18mm

15.Weight：About 83g

16.Data storage: Support

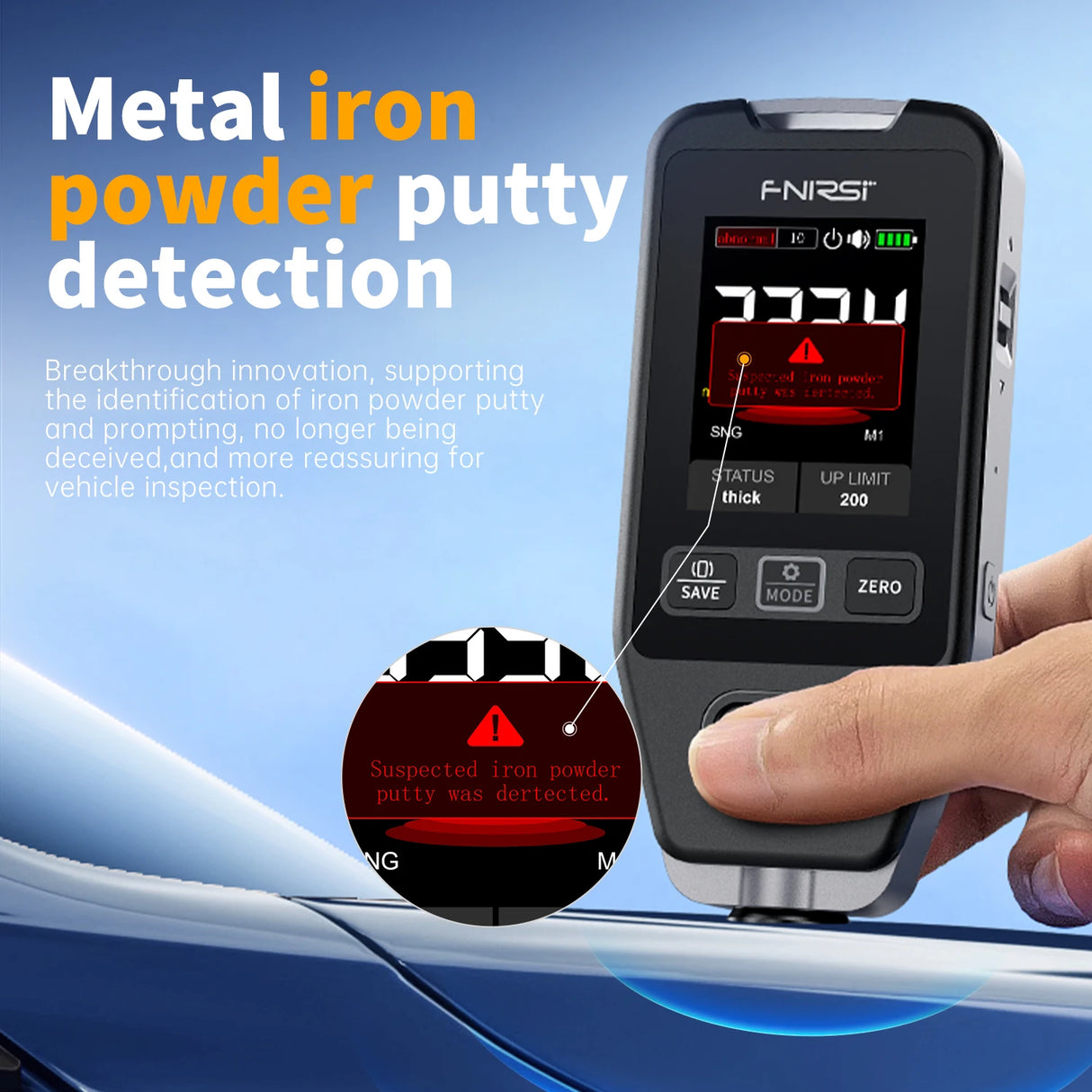

17.Putty powder test: Support

18.Rotatable screen: Support

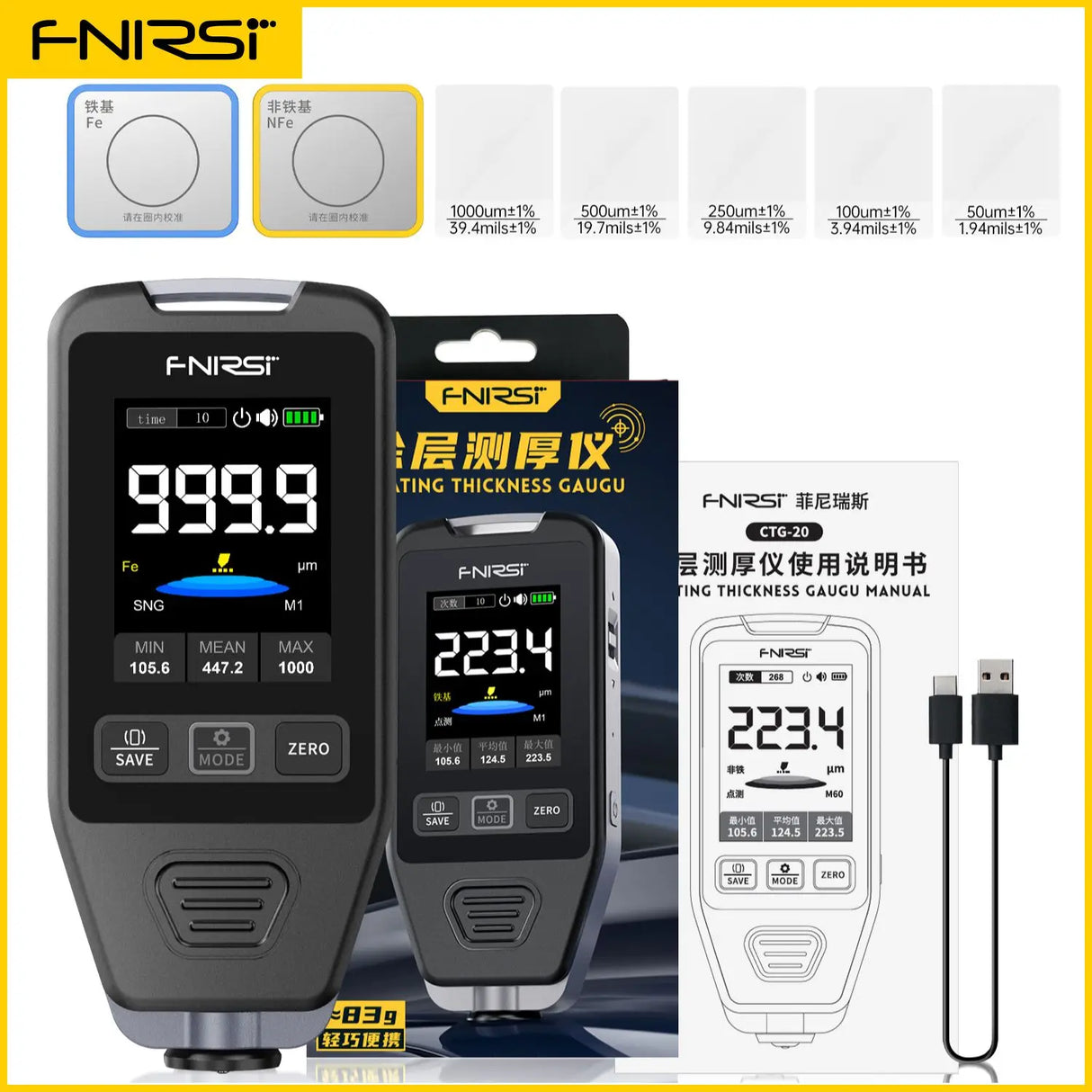

19.Auto Power Off: Support1.CTG-20 coating thicknes gauge

2.Ferrous calibration substrate

3.Non-Ferrous calibration substrate

4.50/100/250/500/1000μm calibration sheet

5.USB data cable

6.User manual
