Sound Level Calibrator Meter 114dB 94dB 104dB Calibration Microphone For 1/2" 13.2mm Microphone Size Sound Meter
Sound Level Calibrator Meter 114dB 94dB 104dB Calibration Microphone For 1/2" 13.2mm Microphone Size Sound Meter is backordered and will ship as soon as it is back in stock.
Returns & Refunds
Returns & Refunds
Not what you thought it was? We accept returns subject to our returns policy.
Delivery and Shipping
Delivery and Shipping
All orders are tracked by us. Depending on the shipping options available at checkout, you may also be able to track your item. Alternatively contact us if you would like to know the status of your order.
Sound Level Calibrator Meter 114dB 94dB 104dB Calibration Microphon...
Trusted by Professionals
From glaziers to electricians, windows fabricators to installers and carpenters — Primrox delivers essential products that help you get the job done right. Reliable. Durable.
Description
Description

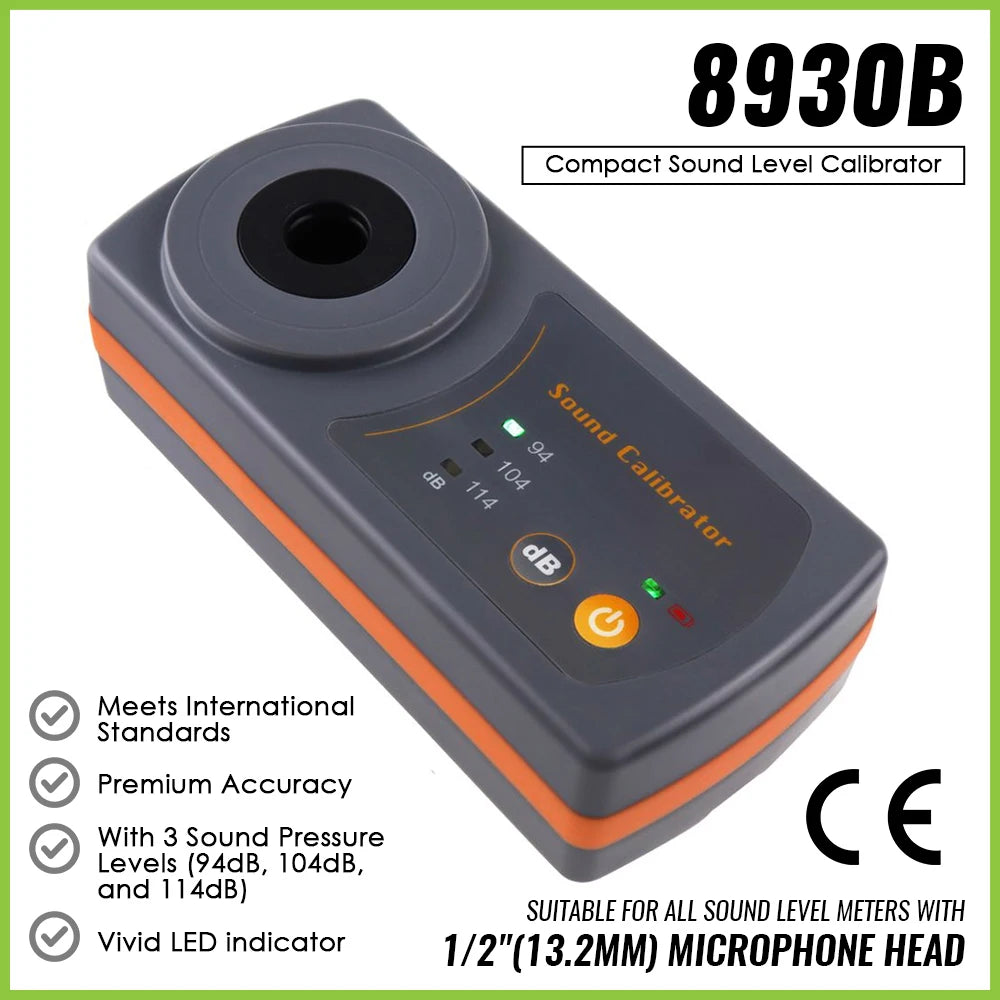

Portable compact battery-operated sound level calibrator suitable for many sound level meters.
When a microphone from a sound level meter is inserted into this calibrator, the sound level meter picks up the signal and displays the signal in dB (decibel) units. The sound level meter should be adjusted (if necessary) to match the calibrator's output signal as closely as possible
Calibration frequency at 1K Hz with three levels 114dB, 94dB and 104 dB. The 1000 Hz frequency allows calibrating sound level meters with any frequency weighting (LIN, A, B, ...), without applying any correction factor.
It can be conveniently used both in laboratory and in the field. The 114 dB sound level allows performing calibrations even in high background noise environments.

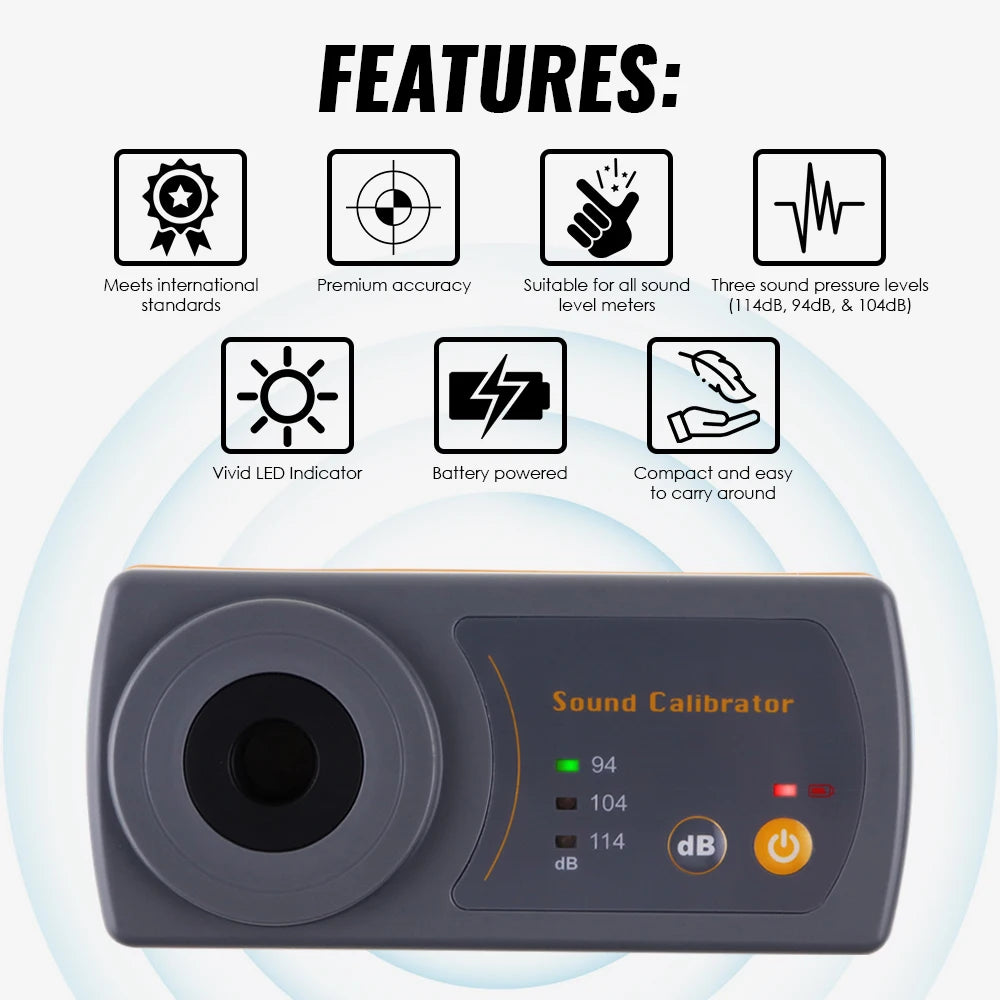

Features:

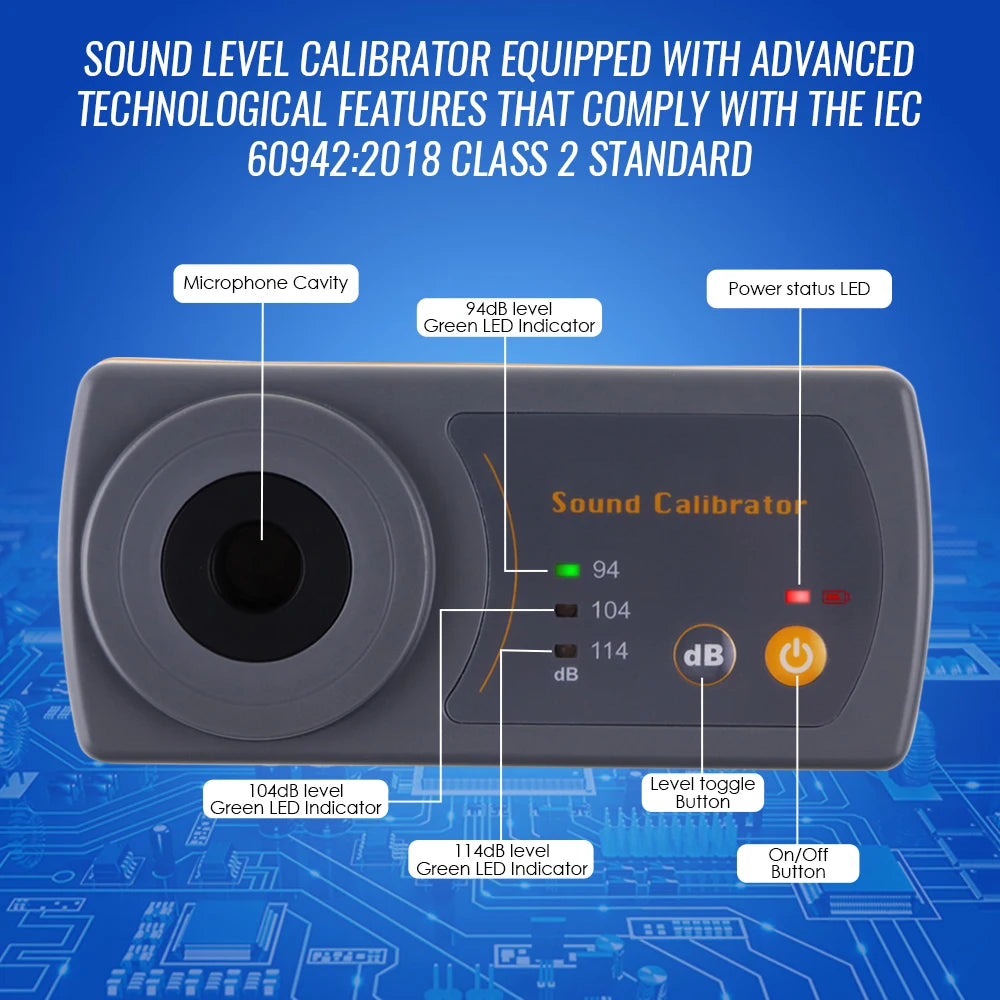

1. Meet IEC 60942:2018, class 2 standard
2. Stay accurate even in extreme humidity condition
3. Suitable for all sound level meters with microphone head mechanical compliant with IEC 61094-1 or IEC 61094-4 in a 1/2"(13.2mm) microphone size
4. Calibration frequency at 1K Hz with three level 114dB, 94dB and 104dB
5. Vivid LED indicator with stability and low power indicator
6. Battery powered, easy to carry around
Specifications:
1. Calibration frequency: 1000Hz
2. Frequency accuracy: ±1.7%
3. Sound Pressure Level: 94dB / 104dB / 114dB
4. Sound Pressure accuracy: ±0.4dB
5. Microphone head cavity diameter: 13.2mm (½")
6. Stabilization time: 10 seconds
7. Total distortion: <3%
Ambient Condition Influence:
Temperature and humidity influence: <0.4dB @ 0...40°C and 25...90%RH
Static pressure influence: <0.1dB @65...108kPa
Stability levels
Temperature and humidity influence: <0.4dB @ 0...40°C and 25...90%RH
Static pressure influence: <0.1dB @65...108kPa
Set Includes:
1 x Sound Level calibrator
English instruction manual
Standard Factory Packaging
SOUND LEVELCALIBRATOR
Sound Pressure Level:94dB/104dB/114dB
Sound Pressure accuracy: 10.4dB
Microphone head cavitydiameter: 13.2mm (½")
Seven features
Have these problems been encountered?
Noise meters are not accurate after too much use
Discrepancies with official data affect project progress
Inaccuracy of the instrument cannot be measured

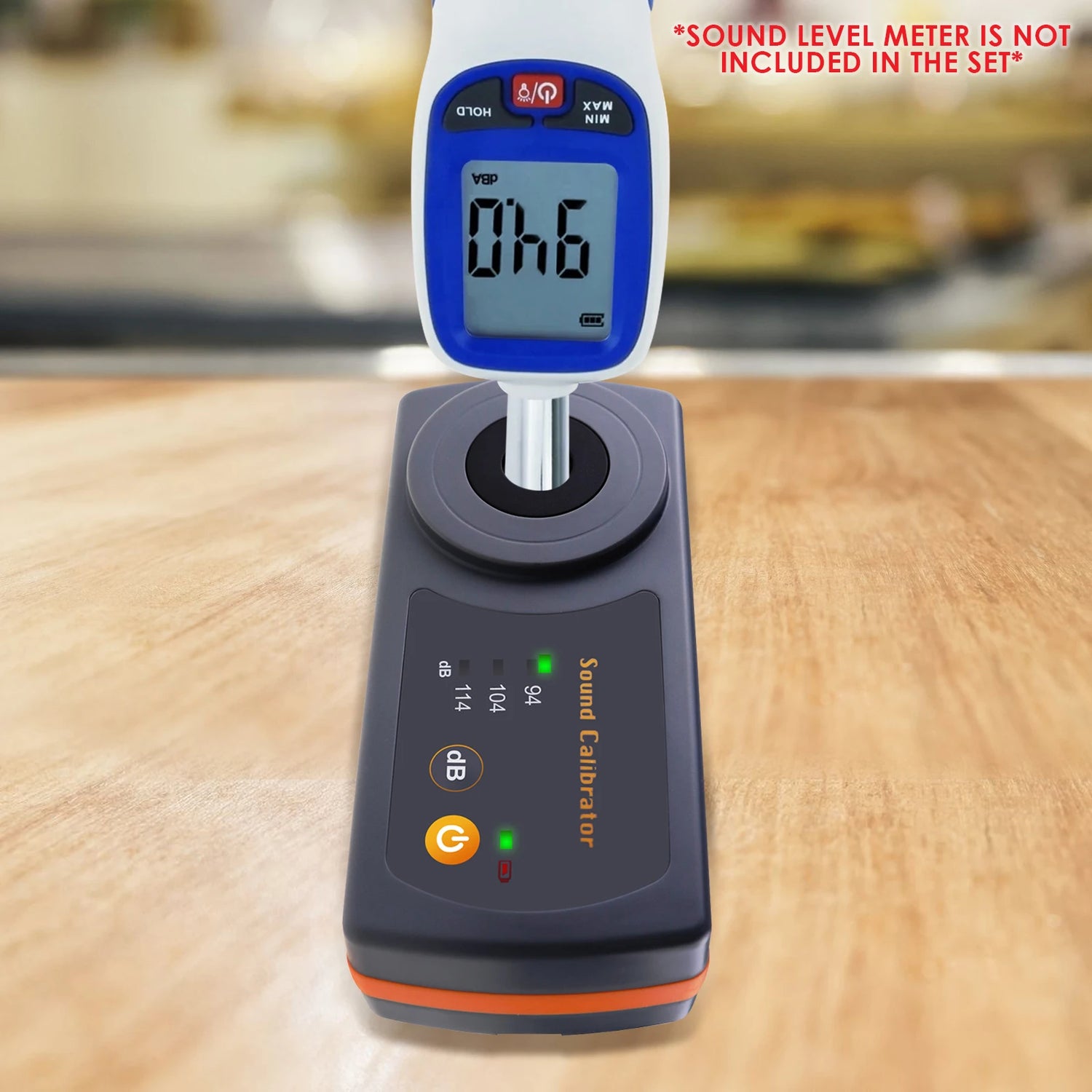

Easy to use in just two steps
1. Plug the transducer into the audio port
2. Adjust the value of the noise meter to make it consistent with the value of the calibrator
Applicable models
SUITABLE FOR ALL SOUND LEVEL METERS WITH MICROPHONE
HEAD MECHANICAL COMPLANT WITH IEC 61094-1 OR IEC
61094-4 IN A 1/2"(13.2MM)MICROPHONE SIZE
Damp proof
Accurate even in extremely humid conditions
Product Showcase

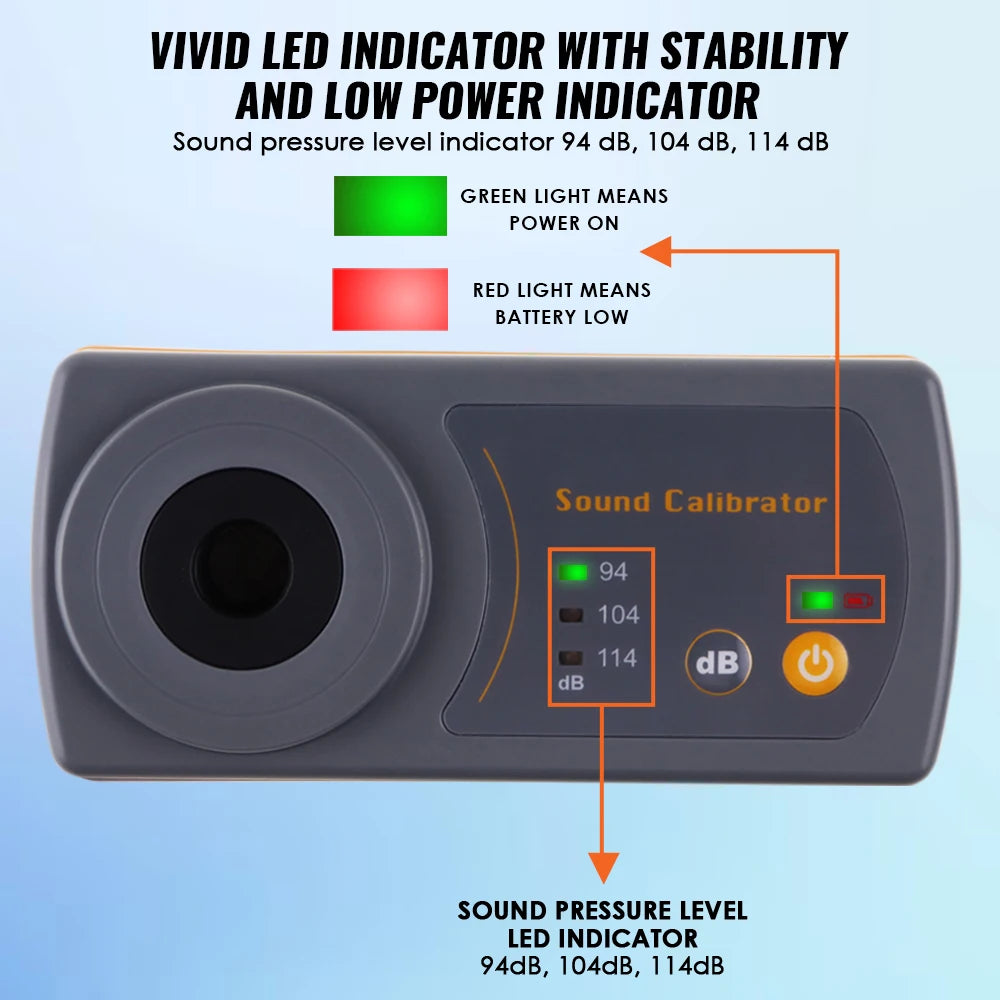

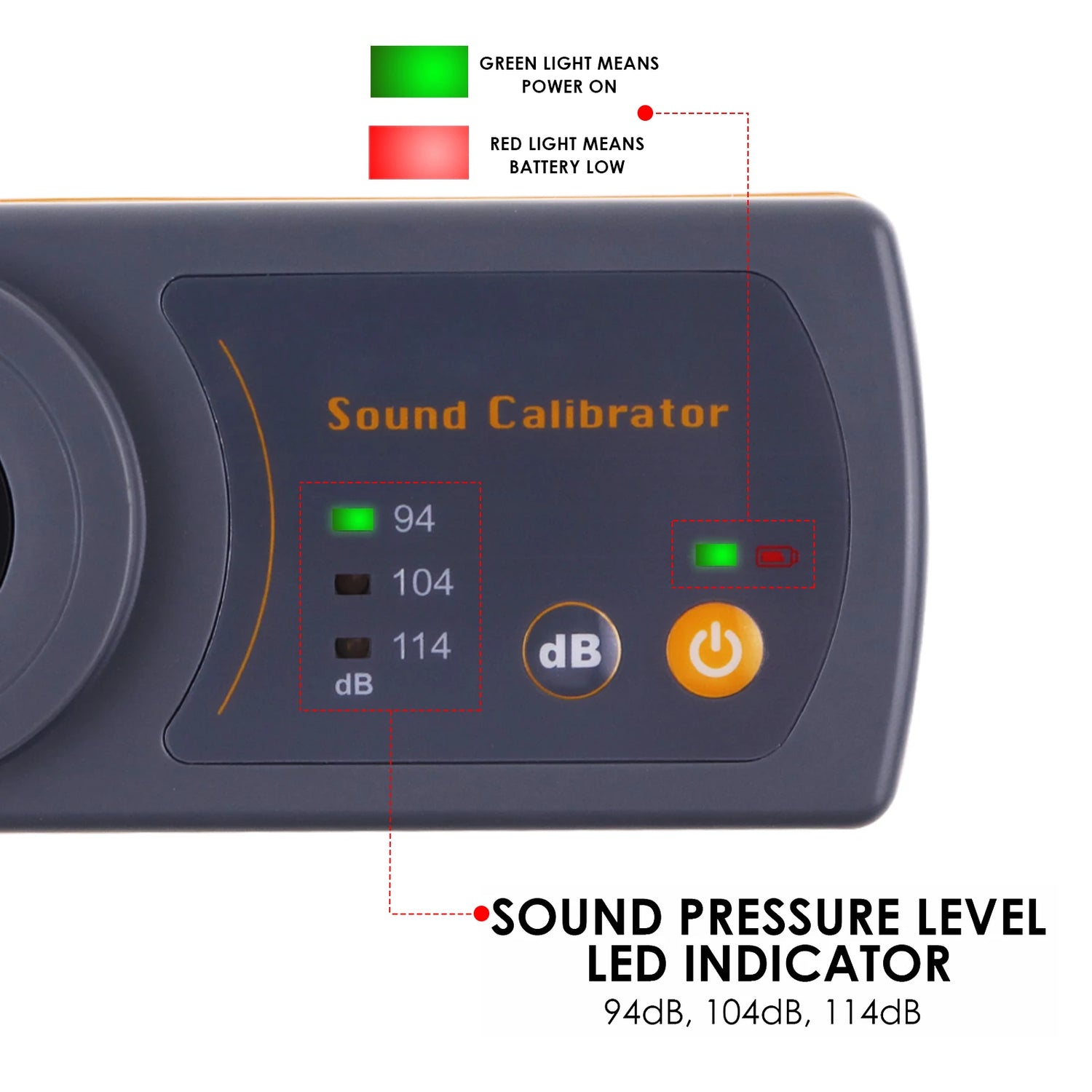

LED indicator: 1 green/Red: ready/low power; 3 green: 114/104/94dB
Operating Environment: 0~40°C; 25~90%RH
Storage Environment: -20~50°C; <90%RH
Dimension: 60 x 130 x 37.5mm
Weight: ~400gms
Battery: 2 x AA Alkaline battery
